Specification:
| Supply Voltage | 5V |
| Communication Protocol | I2C |
| Max Cable Length | 20 m |
| Max DAQ Freq. | 1600Hz / 3 axis |
| Range | +/- 16 G |
| Resolution | 13 bits (+/- 4095) |
Pinout:
| 黑 (Black) | 5V |
| 綠 (Green) |
SDA |
| 紅 (Red) | SCL |
| 熱縮線 (heat shrink) | GND + Shield |

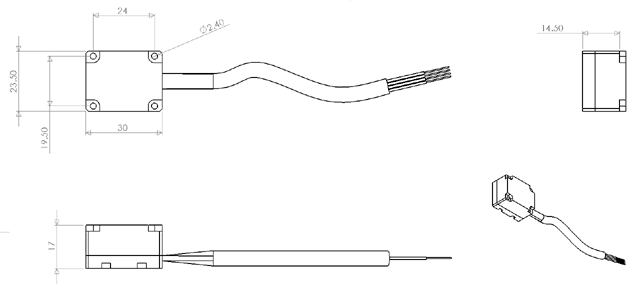

Dimensions:
